STANCEPARTS 1 PAIR OF AIR CUPS
The air cups will fit any brand coilovers, as long as they meet the requirements. Make sure the dimensions match your coilover, we strongly recommend to measure with a caliper. If your coilovers have other dimensions, or need any help, please contact us.
The outer diameter must be less than 99mm.
The inner diameter must be 61 mm or more.
Measure the thickest part of the coilover shaft, available for coilover shaft diameters: 12,5mm, 14mm, 15mm, 16mm, 18mm, 20mm and 22mm. Custom diameters on request.
The air cup lift system will only fit on linear springs, it will not fit on ”shaped” springs as shown in the figure. If you have ”shaped” springs, it’s most times possible to install linear springs.
High spring rates
If you’re using extreme high spring rates, higher than the original rates that came with your coilovers, then it’s possible that you can’t use the full 50mm lift from the air cups. Due to the extreme high spring rates, the weight of the car won’t compress the springs and damper enough to create a stroke for the air cups to lift. This can be solved by using helper springs. Contact us for more info.
The diameter of the air cup is 120 mm (110mm on request)
The fitting is 17mm.
The air cup is only 20mm thick in the lowest position. Depending on your coilovers and vehicle, the air cups will take up a certain space. In most cases you will lose around 20mm. If you have enough travel left on your coilovers to lower it, it won’t be a problem. If not, you can install shorter springs to compensate this, contact us for more info.

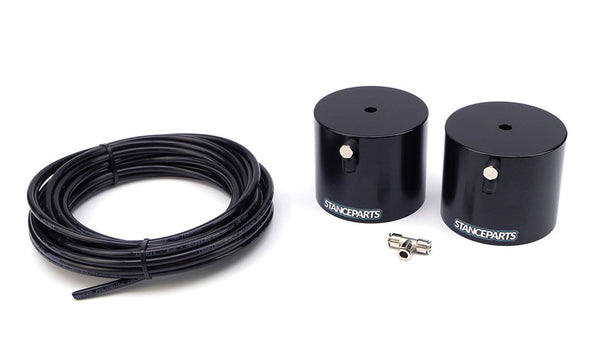

This kit includes:
• 2 air cups
• 10 meters airline
2 year warranty on the air cups.
We strongly recommend to use the following valve to operate the air cups: 3-way valve
